No - Load / IR Electrical Test Equipment Multipurpose Multiple Languages Available

Product Details

Place of Origin: China

Brand Name: AIP

Model Number: AIP89XX

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: wooden case

Delivery Time: 45 working days

Payment Terms: L/C, T/T

Supply Ability: 50 sets per month

Get Best Price
High Light:

electric motor testing equipment

,

motor load test equipment

Product:
Multifunction Motor Testing Machine
Test:
No-Load, Stall, Hipot, IR, Surge, Resistance
Test Time:
8s
Station:
Two Stations
Protecting Cover:
Enclosed Cover
Warranty:
12 Months
Product:
Multifunction Motor Testing Machine
Test:
No-Load, Stall, Hipot, IR, Surge, Resistance
Test Time:
8s
Station:
Two Stations
Protecting Cover:
Enclosed Cover
Warranty:
12 Months
No - Load / IR Electrical Test Equipment Multipurpose Multiple Languages Available

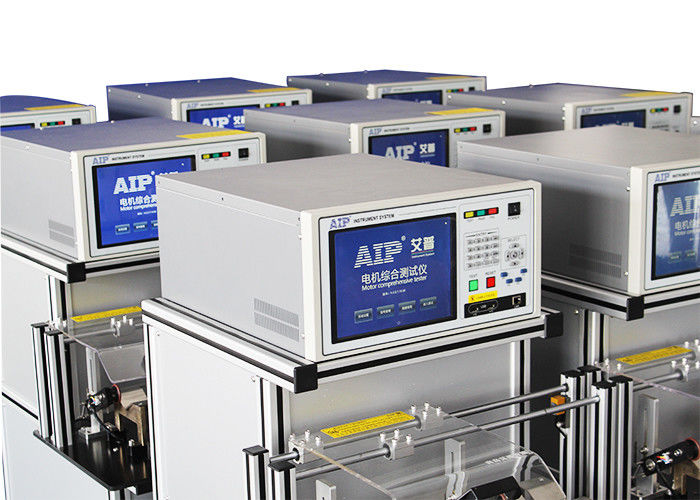

Multifunction Motor Testing Machine, No-Load, Stall, Hipot, IR, Surge, Resistance Test



1. Test: No-load, stall, Hipot, insulation resistance, surge and winding resistance



2. Technical specification

AC Hipot
test time range/resolution 0.5~999.9s 0.1s/step
Output voltage setting range and precision AC 200~3000V ±(2%×setting value+10V)
breakdown current testing range/precision 0.10~20.00mA ±(2%×display value+0.05 mA)
Hipot current presetting alarm range Max:0.10~20.00mA;Min:0.00~20.00mA
Surge
output voltage setting range/precision 500~3000V ±(3%×display value+8V)
sampling frequency 100MHz
waveform comparison

area, area difference, corona and phase

3 waveforms displayed in the testing interface

Direction of rotation
rotation CW, CCW, still
DC winding resistance test
testing range and precision 10.0mΩ~20KΩ ±(0.3%×display value+3 words) temperature compensation can be set.
test time range/resolution

0.5~999s 0.1s/step

temperature compensation function Yes
temperature probe/range DS18b20 -10.0℃~+50.0℃
precision ±0.5°C(range: -10℃~+50℃)
Insulation resistance
output voltage setting range/precision DC 500V/1000V ±(2%×setting value+10V)
insulation resistance testing range/precision

1~500MΩ

≤100MΩ:±(3%×setting value+0.5MΩ) ;>100 MΩ:±(5%×setting value+5MΩ)

insulation resistance alarm setting range Max: 0~500MΩ; Min: 1~500MΩ
test time range/resolution 0.5~999s 0.1s/step
No-load
voltage testing range and precision AC:30~500V ±(0.5%×display value+1 word)
current testing range and precision AC:0.02~5.0A ±(0.5%×display value+2 words)
power testing range and precision 0.6-1500W ±(0.5%×display value+5 words)
Stall
voltage testing range and precision AC:30~500V ±(0.5%×display value+1 word)
current testing range and precision AC:0.02~5.0A ±(0.5%×display value+2 words)
power testing range and precision 0.6-1500W ±(0.5%×display value+5 words)
Low voltage start
voltage testing range and precision AC:30~500V ±(0.5%×display value+1 words)
current testing range and precision AC:0.02~5.0A ±(0.5%×display value+2 words)
power testing range and precision 0.6-1500W ±(0.5%×display value+5 words)



3. Configuration list

No. Name Specification Unit
1 Master unit Customized Set
2 Test bench Customized clamps Set
3 Test software Save the test requirements, data and control the test process Set
4 Cabinet Easy to be moved with foot wheels Set



4. Test procedures

  • Set the test sequence and parameters range as to the stator parameters and establish a new model for this type of stator (The model of one stator type needs to be established only for the first time)
  • Put the tested stator on the test bench and clamp it
  • Sliding cover to start the test and the “in-test” indication light is on.
  • All the items will be tested in sequence. The operator is not allowed to touch the stator during the test.
  • Pass or fail signal will be triggered after completing the test.
  • Take out the tested stator and continue to test next one from step 2.
